• 料斗秤、配料、工業控制
  • 配料配方管理

功能與特性

  • The AD4402 specializes in multi-ingredients process weighing. A single vessel is monitored and provides a very comprehensive procedure for weighing multiple ingredients. User can create, edit and use recipes for up to 99 different products. Each recipe will contains all the information required for actual production, for example, which ingredients to use, the target weight requirement for each ingredient, feeder controls and tolerance check of the final weight. Connectivity of the indicator is also top notch, from the basic RS-232 or RS-485 interface to different industrial standards like CC-Link, Device Net and Profibus (separate options required). Maximum number of ingredients per recipe is 10. Maximum number of ingredient for feeder control purpose is 20.
  • 100 times/sec. High speed sampling.
  • High display resolution to 16,000 counts.
  • Up to 1 million counts of A/D resolution.

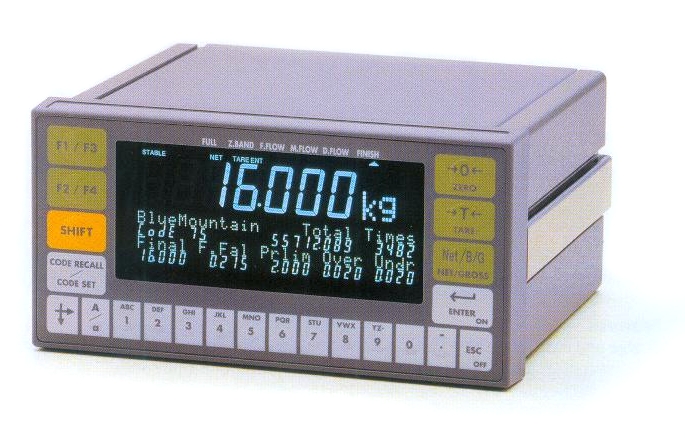

  • Large and easy to see blue Vacuum Fluorescent Display (VFD).
  • Uses a ten-key pad and function button that are designed for ease of operation and understanding.
  • The main display has a 7—digit VFD with 18mm tall characters.
  • The sub display has a total of 54 5mm—tall dot matrix characters and displays the values and error comments.
  • Pre-programmed with multiple sequences and functions for filling machines, simple mixing machines and a weight-checker and other applications.
  • Stores 100 data for raw materials and 100 data for mixing codes.
  • RS-485 Serial Output (Current Loop) standard feature allows you to link up to 32 units to the display.
  • The Monitor Function shows each operating interface and provides a confirmation on the display.
  • The compact body meets DIN requirements, while minimizing the depth of the indicator to 135mm.
  • With the proper optional interface, the AD-4402 is compatible with CC-Link, Device Net, PROFIBUS. Standard Modbus function available.
